# I. Introduction

The role of patents in promoting, or hindering, the mitigation of global climate change and environmental degradation is uncertain and increasingly contested. In Vice President Al Gore’s 2017 film, An Inconvenient Sequel: Truth to Power,[1] Mr. Gore portrays the negotiations leading up to the 2015 Paris Agreement on international climate change.[2] In one segment, he focuses on a standoff between the government of India, a major carbon emitter, and other countries. In attempting to mediate the standoff, Mr. Gore seeks to broker a trade: India would give up its national coal power plan, and U.S. tech company SolarCity would pledge its solar technology patents for royalty-free use in the developing world.[3] This commitment of patents would, presumably, enable India to implement environmentally friendly solar technology in lieu of its carbon-spewing coal-powered plants.

According to the film, the SolarCity patent pledge was inspired by a similar commitment made by Elon Musk, the outspoken CEO of Tesla Motors.[4] In 2014, Musk famously blogged that “All Our Patent Are Belong To You,” seemingly contributing Tesla’s valuable patent portfolio to the world at no cost.[5] Though it remains unclear whether SolarCity ever pledged its patents and whether any deal in Paris was brokered by Mr. Gore,[6] the episode brings to the forefront the potential role that patents can play in fostering the development of technologies to mitigate global climate change.

In the area of climate change mitigation and other green/‌clean technology (green/clean tech), a variety of proposals to increase innovation and diffusion of technology have been made, many of them involving adjustments to the patent system.[7] Such proposals have encompassed strategies to increase the number of green/‌clean tech patents to encourage private sector investment in innovation and to decrease either the number or potency of such patents in an effort to reduce the costs of innovation globally. In the first category (enhancing patenting), proposals have been made to accelerate or “fast track” patent applications for green/‌clean tech inventions,[8] and to aggregate patents into an international licensing organization situated to tax greenhouse gas emitters.[9] In the category of decreasing the strength of, or increasing access to the technology covered by, green/‌clean tech patents, proposals have been made for: the compulsory licensing of green/‌clean tech patents by governments;[10] the exercise of governmental march-in rights;[11] the acquisition of green/‌clean tech patents by a fund which would make them freely (or more broadly) available;[12] an exemption from patent infringement for noncommercial research and experimental use;[13] the statutory exclusion of some green/clean technologies from the scope of patent protection;[14] and constraints on the exclusive licensing of green/‌clean tech inventions.[15] At the extreme end of environmental activism, calls have been made to abolish patents entirely.[16] In this Article, we examine a private ordering approach to incentivizing the dissemination of green/‌clean technologies: the collective patent pledge, or commons.

Although patents give their owners the right to exclude others from practicing a patented technology or to charge them for the privilege of doing so,[17] an increasing number of firms across different industries have begun to make voluntary pledges intended to limit their ability to enforce their patents to the fullest degree.[18] Yet the pledging of patents, even to the extent that they will not be asserted against infringers, stops short of abandoning or contributing them to the public domain.[19] Thus, under a pledge model, also referred to as a patent commons, patent assets are retained by their owners, who continue to incur maintenance and other fees, but the use of such patents for traditional exclusionary purposes is significantly curtailed.[20]

Patent commons differ from other mechanisms used to share patents, including cross-licensing agreements and patent pools, in important ways. For example, in both cross-licensing agreements and patent pools, access to patents is granted only to participating companies, although in the case of patent pools, outsiders often can also access the pooled patents for a fee.[21] The main difference between these structures and further-reaching mechanisms, like the patent commons, therefore, is that the commons typically confers benefits on all third parties, regardless of their contribution to the commons and typically without a formal contract or payment.[22]

Unlike patent pledges that seek to foster technology or platform adoption, some pledges are made in support of philanthropic or corporate social responsibility (CSR) goals. For example, a number of patent pools seeking to improve access to lifesaving drugs in the developing world have emerged over the years. These pools, which include the Medicines Patent Pool (MPP) and The Pool for Open Innovation Against Neglected Tropical Diseases (NTD Pool), also include major pharmaceutical companies who participate largely in a philanthropic capacity (with concomitant public relations (PR) benefits).[29]

The EcoPC was an innovative not-for-profit initiative undertaken by a small group of industrial firms with the goal of pledging “green technology” patents for broad, royalty-free use in addressing environmental challenges.[30] The thirteen EcoPC participants collectively pledged a total of 248 “green technology” patents (94 priority patents or distinct inventions) to the EcoPC between its formation in 2008 and its discontinuation in 2016.[31]

When created, the EcoPC had the ambitious stated objective of promoting the diffusion of green technologies to increase and accelerate their adoption and to encourage follow-on innovation. The theoretical mechanism to achieve this was simple: by suspending a patent owner’s ability to assert a patent against any users of the patented technology, the technology—which had already been disclosed by the patent publication—would become available for royalty-free use by any interested party. In principle, this mechanism could address the well-known welfare cost associated with temporary market power granted by patents that likely slows the diffusion of patented technology.[32] A second possible benefit was that those building on the contributed technologies might find other (commercial) outputs of the contributing firm useful, or might add to a knowledge base from which the firm would benefit.[33]

Following its creation, the EcoPC attracted substantial attention in the scholarly literature,[34] the popular press,[35] and the blogosphere.[36] Even environmental activist groups such as Greenpeace had good things to say about the project.[37]

But in addition to accolades, the EcoPC attracted some skepticism regarding its potential effectiveness. This skepticism focused, among other things, on whether a commons could offer sufficient incentives to attract valuable patent pledges and thereby achieve its ambitious goals.[38]

In contrast to other mechanisms designed to share patents, such as cross-licensing and patent pools, patent owners in the EcoPC maintained ownership of their patents (which is costly)[39] while making those patents freely accessible to third parties, including competitors. Some competitive safeguards were left in place, notably a defensive termination right in case a different patent was asserted against the pledger by a firm using the patented technology. For these reasons, it was not obvious what benefits the commons offered to participants beyond reputational enhancement. This, in turn, meant that participants could have had incentives to minimize their costs by pledging only patents with little commercial value and allowing them to lapse shortly after they were pledged.[40]

In an earlier study, Hall and Helmers studied the characteristics of the patents pledged to the EcoPC.[41] Their study confirmed that the pledged patents did claim environmentally friendly technologies. Moreover, pledged patents were of similar value to other patents in the pledging firm’s portfolio, but of lower value than other patents in their class, using the usual patent value indicators (based on citations, family size, number of patent technology classes, etc.). The findings suggested that the EcoPC participants might have pledged patents with the potential to diffuse environmentally friendly technologies that were possibly useful to other firms and researchers.

To study whether the EcoPC increased the diffusion of green technologies, Hall and Helmers looked for changes in forward citations to pledged patents following their addition to the commons. They constructed a set of control patents that matched the publication authorities, priority years, and technology classes of the EcoPC patents. They examined the pattern of citations by subsequent patent applications to the set of EcoPC patents and their controls over time, before and after contribution and found that the EcoPC patents tended to be cited less than the patents in the control group before contribution to the EcoPC. However, the results after contribution were inconclusive because most of the patents were contributed in late 2008 and there was little data post-pledge as citation data was available only through early 2012, leaving little more than three years of citation data post-pledge.

In this Article, we assess the effect of the EcoPC on technology diffusion and assess its impact more broadly, using several approaches. The first is a set of interviews with participants in the EcoPC and those responsible for it, described in Part III. These interviews provide helpful qualitative information that allows us to better understand the underlying causes of the EcoPC’s failure to encourage the diffusion of pledged technologies. The second is an updated look at the data on the patents pledged to the EcoPC, described mainly in Part IV. With the passage of time, substantially more citation data has become available (through 2016 as opposed to early 2012 in Hall and Helmers’ earlier study). This allows us to reexamine the data and provide a more definitive answer to the question of whether the commons had any effect on technology diffusion, at least as reflected in subsequent patenting. The fact that several new commons were created at the same time the EcoPC was discontinued in 2016,[42] also motivates us to revisit the viability of such patent commons more generally. Finally, we asked inventors of the patents that cited any of the EcoPC patents after they were pledged about the role that the pledge played in their decision to rely on an EcoPC patent as prior art.

To summarize our main findings: we do not find any evidence that the EcoPC increased the diffusion of pledged patents. Pledged patents were cited less than the matched control patents before they entered the commons, suggesting that they were already less valuable, and their pledge does not change this. Inventors of citing patents unanimously indicated that the pledge, i.e., royalty-free access, did not affect their decision to rely on an EcoPC patent as prior art. In fact, none of the inventors that responded to our query were even aware that the cited patent was part of the EcoPC, and hence, royalty-free access played no role in their decision to rely on it as prior art. These results suggest that the commons had no effect on technology diffusion. Looking at the EcoPC priority patents, 82% had lapsed by July 2017 (26% expired, 18% were rejected or withdrawn, and 38% lapsed because of renewal fee nonpayment). Expired patents were not replaced by new patent pledges. This indicates that participating companies, in most cases, did not consider the benefits of the commons sufficiently large to maintain the patents in force. Our interviews with representatives of the EcoPC participants reveal several common critiques of the EcoPC’s structure and operational processes that help explain our quantitative findings, particularly EcoPC’s inability to provide information regarding the usage of contributed technologies.[43] Another major impediment to diffusion was the lack of information provided by pledging companies beyond the patent documents that could have helped potential users (especially in developing countries) see potential applications of the pledged technologies. Finally, no concerted effort was made to group or link patents in the commons to any particular technology. This lack of coordination may have limited synergies that could have been created through a more deliberate approach to the technologies covered by contributed patents.

This study both updates Hall and Helmers’ previous study and fills gaps in our understanding of the functioning and performance of the EcoPC and patent commons more generally. Providing a more definitive answer to the question of diffusion and the functioning of the EcoPC more broadly is important for three reasons. First, it offers insight regarding the manner in which patent pledges can support the diffusion and implementation of (green) technologies around the world. Second, it can inform the design of other pledge communities both in the environmental space and other key technology areas, such as electric vehicles, software, biotechnology, and agriculture. Third, it informs us more generally about the viability of patent commons created by for-profit companies as a mechanism to share access to patented technology.

The remainder of this article is structured as follows. Part II describes the institutional design and history of the EcoPC. Part III summarizes the findings from our interviews of participants in the EcoPC. In Part IV we turn to a quantitative analysis of these patents and their citations and discuss the results of our inventor survey. Finally, in Part V we analyze our findings and assess their impact on the planning and design of future patent commons.

# II. The Eco-Patent Commons: Structure and Development[44]

The concept of the EcoPC as a collective mechanism for permitting broad usage of patents covering environmental technologies was originally developed by IBM in the mid-2000s as one of several corporate initiatives directed toward environmental protection and sustainability.[45] Given IBM’s well-known patent strength,[46] a program to promote environmental causes would capitalize on one of the company’s principal assets. IBM had already made significant commitments to the sharing of patents and other intellectual property (IP) in the area of open source code software.[47] Accordingly, extending these initiatives to the environmental area was consistent with IBM’s existing corporate culture.[48]

The idea behind the EcoPC was that industrial firms with large patent portfolios likely hold patents covering technologies with environmental applications, but because those technologies are not core to the firm’s business, they are languishing unused.[49] If, however, the patents covering these technologies could be made freely available to users around the world, then a significant public service could be rendered at a minimal cost to the patent holder.

IBM publicly announced the concept for the EcoPC at its Global Innovation Outlook conference in 2006.[50] It then initiated discussions with other large firms with which it had existing business ties and which it believed might be sympathetic to a collective approach to making environmental technologies more broadly available. In January 2008, IBM announced the launch of the EcoPC together with Nokia, Pitney Bowes, and Sony.[51] A total of thirteen firms eventually joined the EcoPC as summarized in Table 1, below.[52]

Table 1: Firm Participation in the EcoPC
Firm Date Joining EcoPC No. Patents Pledged*
IBM Jan. 14, 2008 29
Nokia Jan. 14, 2008 1
Pitney Bowes Jan. 14, 2008 2
Sony Jan. 14, 2008 4
Bosch Sept. 8, 2008 24
DuPont** Sept. 8, 2008 11
Xerox Sept. 8, 2008 13
Taisei Mar. 23, 2009 2
Ricoh Mar. 23, 2009 1
Dow Oct. 20, 2009 1
Fuji Xerox Oct. 20, 2009 2
Hewlett-Packard July 1, 2010 3
Hitachi** July 25, 2011 1

* Priority patents (i.e., patent families).

** DuPont and Hitachi withdrew from the EcoPC in 2013, as of the transfer of EcoPC’s management from WBCSD to ELI.

The stated mission of EcoPC was “to manage a collection of patents pledged for unencumbered use by companies and IP rights holders around the world to make it easier and faster to innovate and implement industrial processes that improve and protect the global environment.”[53] Accordingly, patents eligible for inclusion in the EcoPC were required to belong to one of sixty enumerated International Patent Classification (IPC) codes relating to environmental or sustainability technology. Technologies sought by the EcoPC included energy conservation, pollution control, environmentally-friendly materials, water or materials use or reduction, and recyclability.[54] Two hundred forty-eight patents were pledged to the EcoPC, with the last such contribution occurring in 2011.[55]

To pledge a patent to the EcoPC, the owner was required to make an irrevocable covenant not to assert the patent—or “any worldwide counterparts”—against any infringing machine, manufacture process or composition of matter that “reduces/eliminates natural resource consumption, reduces/‌eliminates waste generation or pollution, or otherwise provides environmental benefit(s).”[56] This being said, patent owners retained the (defensive termination) right to assert pledged patents against (a) any EcoPC participant that asserted any environmental patent against them, or (b) any non-EcoPC participant that asserted any patent against them.[57]

The initial administrator of the EcoPC was the World Business Council for Sustainable Development (WBCSD), a Geneva-based non-governmental organization focused on environmental and sustainability issues.[58] WBCSD’s initial duties consisted primarily of hosting the EcoPC website and promoting EcoPC to other WBCSD members for purposes of recruitment. WBCSD publicized the EcoPC among its members and attracted several of the participants that joined following the EcoPC’s formation.[59]

Participation in the EcoPC was open to all individuals and companies in the world, the only requirement for participation being the pledging of one or more patents according to the EcoPC’s rules.[60] Neither membership in WBCSD nor any additional dues or charges were required for EcoPC participation. The EcoPC itself was characterized as an unincorporated, nonprofit association.[61]

In 2013, the administration of EcoPC was transferred from WBCSD to the Environmental Law Institute (ELI), a Washington, D.C.-based trade and advocacy organization.[62] This transition was apparently orchestrated by IBM, which had withdrawn as a member of WBCSD, thereby eliminating the primary driver of WBCSD’s involvement. ELI, of which IBM was a significant member, hosted the EcoPC website from 2013 through 2016, but was not actively engaged in recruiting new participants. Two EcoPC members, Hitachi and DuPont, withdrew from the EcoPC at the time of this administrative shift. No new patents were contributed to the EcoPC after Hitachi’s initial 2011 contribution. By 2016, very little activity was occurring at the EcoPC. Accordingly, in 2016, the EcoPC was formally discontinued.[63]

Though the EcoPC has been shut down, pursuant to the EcoPC Ground Rules and pledge terms, the “irrevocable” non-assertion pledge made with respect to each pledged patent will continue in accordance with its terms indefinitely.[64]

# III. Interviews

This Part describes the results of a series of semi-structured interviews with representatives of participating companies, WBCSD and ELI.[65] Here we focus on the strengths and weaknesses of the EcoPC that were identified by interviewees in an attempt to inform our interpretation of our quantitative results on the diffusion of pledged technologies.

## A. Methodology

We identified individuals employed by EcoPC corporate participants who had been personally involved with their employer’s decision to join the EcoPC, its ongoing participation in the EcoPC, or both. Through online searches and informal inquiries, we were able to obtain valid and current contact details for representatives of nine of the thirteen EcoPC corporate participants. Seven of these individuals consented to be interviewed for this study (five by telephone and two by written correspondence).[66] In addition, we interviewed representatives of WBCSD and ELI who were directly involved in EcoPC activities.[67]

Each interview subject responded to questions relating to his or her employer’s reasons for joining the EcoPC; how patents were selected for inclusion in the EcoPC; the company’s ongoing engagement with the EcoPC; views regarding the discontinuation of the EcoPC; the company’s overall satisfaction with the EcoPC; whether the company’s goals in joining the EcoPC were achieved; and the relative strengths and weaknesses of the EcoPC structure. In addition, representatives of the WBCSD and ELI were asked questions relating to their operation and management of the EcoPC. These responses are summarized below.

The information gathered through these interviews is not necessarily representative of the views held by all member companies of the EcoPC as it is possible that interviewees selected into our sample based their responses on their subjective views of the performance of the EcoPC. That said, we obtained information from a relatively diverse sampling of company representatives (relative to the number of people involved in the project) across different geographical regions (companies based in the U.S., Europe, and Japan) and are therefore optimistic that these interviews offer relevant information in regard to a significant portion of the EcoPC participants’ views regarding the organization.

## B. General Responses

### 1. Joining EcoPC

Based on the sample of EcoPC participants interviewed, it appears that the primary drive to participate in the EcoPC came from management within each corporation’s environmental, sustainability, or corporate social responsibility unit (for convenience, we refer to such business units as “environmental and social responsibility” or ESR). Although in most cases, the corporate legal or IP department was consulted, it was not the primary internal champion of participation in the EcoPC. In several cases, the decision to join the EcoPC was made by an executive or manager within the ESR unit, with the legal department being involved only later (to help identify suitable patents for contribution).

Given the origin of EcoPC participation in corporate ESR units, it is not surprising that the rationales for joining the EcoPC were largely focused on improving global environmental conditions and sustainability. Several respondents mentioned a corporate culture of ESR, while a few expressed a desire to ensure that environmentally valuable technologies were made available in the developing world. Responses evoked themes of both environmental preservation/‌stewardship, as well as corporate social responsibility.

With respect to each of the corporate EcoPC participants other than IBM, the company was approached directly by a representative of either IBM or the WBCSD regarding participation in the EcoPC. In several cases, a personal relationship at the managerial or executive level facilitated the decision to participate.

One attractive feature that weighed in favor of joining the EcoPC was the lack of any financial commitment on the part of the participants. The only requirement for EcoPC participation was the identification and contribution of one or more patents. Several respondents indicated that their employers would probably not have joined the EcoPC had a membership fee been required. Probably due to the lack of a financial commitment, the corporate approval required for joining the EcoPC was, in some cases, handled at the level of the ESR unit. In at least one case, however, the company was required to obtain corporate approval at the board level.

It is interesting to note that none of the individuals that were interviewed identified a PR benefit as a principal justification for joining the EcoPC. While several interviewees acknowledged that positive PR associated with the EcoPC may have contributed to the decision to join, in particular at the executive level, the principal support for EcoPC participation within firms originated in, and was championed by, ESR business units with express goals directed to environmental sustainability. This observation runs counter to several prior analyses of the EcoPC, which speculated that PR benefits may have been significant motivators for firms to join.[68] Indeed, even the promotional materials created by the WBCSD to recruit additional EcoPC members emphasize these PR benefits.[69] Yet, it seems that PR may have played a relatively modest role in the decision of firms to join the EcoPC.

### 2. Selection of Patents.

It was a starting premise of most firms that the patents pledged to the EcoPC would not be central to the firm’s commercial interests. In fact, this feature was a “selling point” for membership in the commons: the patents that would be contributed were not expected to “represent an essential source of business advantage” for their owners.[70] As explained by one senior IBM executive, “[m]any patented environmental technologies are not strategic, so sharing maximizes the social benefit without sacrificing competitive advantage.”[71] Thus, the patents contributed to the EcoPC were largely tangential to the primary business interests of the members. For example, IBM pledged a patent relating to recyclable cardboard packaging for electronic parts,[72] Nokia contributed a patent for recycling obsolete cellphones for use as calculators and personal digital assistants,[73] DuPont contributed a patented method for detecting pollution in soil, air or water by using a photoluminescent microorganism,[74] and Pitney Bowes contributed a patent claiming a design for electronic scales that are less likely to be damaged when they are overloaded[75] (a Pitney Bowes official explained that the patent related to the environment because “if you have a technology that extends the life of electronics, you keep it out of the waste stream”).[76]

The manner in which specific patents were selected for contribution to the EcoPC varied among participants. IBM, reputedly the largest patent holder in the world, utilized a variety of internal searching and analysis tools to determine which of its patents were suitable candidates for contribution: both because they fit into the EcoPC’s approved technology categories and were not actively being commercialized by IBM. Other firms used similarly sophisticated patent searching methodologies, including analysis of external citations to patent documents to determine whether patents had potential financial value. Some firms, even those with large patent portfolios, used less formal approaches. In one case, a patent was identified because a senior environmental manager at the company was named as an inventor on it. Another company asked its internal managers at the product division level to recommend patents for contribution. At one company, the majority of patents contributed originated within the ESR business unit, which championed EcoPC membership within the company. In all cases, EcoPC participants selected patents for contribution through internal mechanisms and did not engage external consultants or attorneys to assist with the search or selection process, which also helped keep the costs of participating in the EcoPC low.

### 3. Ongoing Engagement.

All respondents indicated that a meaningful, though not overwhelming, amount of effort was required at the initiation of EcoPC participation, largely to identify relevant patents to contribute. After that initial determination was made, however, most firms (IBM being the notable exception) indicated that they engaged very little with the EcoPC. As noted above, there were occasional telephone conferences during which participants were updated regarding the EcoPC’s activities, but after 2011, when the last new member joined, there was little in the way of updates. As noted above, none of the individuals that were interviewed recalled participating in any formal vote of EcoPC members, even when the decision to wind down the organization was made. This being said, most of the respondents did not object to this minimal level of involvement and did not feel the need to be involved to a greater degree.

### 4. Discontinuation.

Each respondent was satisfied with the decision to wind down the EcoPC, indicating that the organization had run its course and provided comparatively little value by the time that it concluded. None of the respondents expressed disappointment or disagreement with the decision to discontinue the EcoPC. In fact, at least three respondents were unaware, at the time they were interviewed, that the EcoPC had been discontinued more than a year earlier, demonstrating that, at least in these cases, the EcoPC was a fairly insignificant activity for these companies.

## C. Critiques of EcoPC

As noted above, most respondents viewed the EcoPC as a valuable demonstration of corporate willingness to collaborate to achieve environmental and sustainability goals. The PR benefits of EcoPC participation were also viewed as valuable by some companies. However, each of the respondents expressed dissatisfaction with at least some aspects of the EcoPC which helps explain its failure to encourage the diffusion of the pledged technologies and ultimately the EcoPC’s shutdown:

### 1. Membership and Recruitment.

At its height in 2011, the EcoPC had thirteen corporate participants.[77] Though these firms were all major global enterprises with large patent portfolios, they still represented only a tiny fraction of the total potential membership in the organization. Particularly given that the EcoPC charged no membership fee, it was somewhat puzzling that so few firms joined. While WBCSD did appear to promote membership in the EcoPC, few of WBCSD’s many members elected to join. Based on our discussions with EcoPC members, we believe that possible impediments to recruitment were: (a) the perceived difficulty and expense of identifying suitable patents for contribution; (b) a belief among potential members that they lacked patents that were suitable for contribution; and (c) an aversion to the idea of contributing potentially valuable patents to the EcoPC without compensation, a view generally held by legal and IP departments in contrast to corporate divisions focused on sustainability and corporate social responsibility.

### 2. No Tracking of Usage.

All respondents observed that there was no effective way to determine whether the technologies covered by patents pledged to the EcoPC had been utilized.[78] As a result, it was difficult for them to draw conclusions regarding whether the EcoPC was worth the effort, and to determine whether the goals of improving environmental conditions and sustainability were being met. Moreover, without clear success metrics, it was difficult to justify devoting ongoing effort to the EcoPC to upper management at some companies. Several respondents indicated that the EcoPC made a conscious decision not to require users to register with the website or report back to the EcoPC, as such requirements would serve as barriers to use of the website.

Running somewhat counter to these comments, one interviewee noted that, in the early phase of the EcoPC, he/‌she received informal approaches from potential users seeking to understand the technology that had been made available through the EcoPC. This respondent indicated that during group calls with EcoPC representatives, they would share information regarding how many calls of this nature they had received. However, such informal inquiries dropped off after the initial years of the EcoPC, which may suggest that the technologies were no longer perceived as useful.

WBCSD, at least initially, tracked hits to the EcoPC website and shared this information with the participants.[79] However, as noted above, identifying information about visitors was not collected, and it was not clear whether visitors were academics, students, attorneys, journalists or potential users of the technologies.

### 3. Notice of Available Technologies.

It was noted by several interviewees that the cataloging of patents on the EcoPC website, which was organized by contributing company rather than technology area, was not particularly intuitive or informative. It required potential users to look up the relevant patents one by one in order to understand the technology being offered. Moreover, usually only a single patent family member was listed, requiring users to identify the remaining patent family members themselves. This procedure would have required both substantial effort on the part of potential users, as well as a high degree of familiarity with the format and terminology of patent documents.[80] As documented previously by Hall and Helmers, the website also listed a number of erroneous patent numbers, another potential source of frustration for users.[81] Taken together, these design shortfalls likely impeded the widespread usage of the EcoPC’s resources.

### 4. Lack of Technology Transfer.

Another issue raised by several respondents was that the EcoPC sought to promote the dissemination of green technologies through patents alone. Yet complex technologies often cannot be understood and implemented, especially by non-experts working in the developing world, merely through patent disclosures.[82] Some form of technology assistance or transfer is generally required to enable local users to take advantage of patented technologies, or even to realize that such technologies are available and applicable to local problems. This is especially the case with complex engineering and infrastructural technologies.[83] This issue was recognized by critics soon after the formation of the EcoPC,[84] and continued to be an issue throughout the life of the organization.

### 5. Emphasis on the Developing World.

One of the motivating principles behind the EcoPC was that patents would be made freely available to users in the developing world,[85] much as the MPP and NTD Pool focused on the pressing health needs of underdeveloped countries.[86] However, many of the EcoPC contributed technologies had little relevance to industries in the developing world. For example, one of IBM’s contributed patents related to a technique for cleaning semiconductor wafers using ozone gas to eliminate contaminants produced by chemical cleaning processes.[87] While this invention has a clear environmental valence, it would seemingly be useful only in a few industrialized countries that already have multi-billion dollar semiconductor fabrication plants.

In addition, the focus on the developing world belies a fundamental misunderstanding of the global patent system by some of the EcoPC planners. Patents prevent usage of a patented technology only in the countries where patents are issued. Most companies do not seek patent protection in the least-developed countries, either because protection is uncertain in those countries, or because their markets are underdeveloped and procuring patent protection is not viewed as cost effective.[88] Even in middle-income countries, multinationals tend to focus on pharmaceutical patenting and patenting in specific areas where the country in question is competitive.[89] Accordingly, many technologies that are patented in the developed world are not themselves patented in the developing world.[90] This general rule certainly applies to the patents contributed to the EcoPC, most of which have “family” members throughout the developed world (North America, Europe, Asia Pacific – see Table 4 below), but few if any patent family members in the developing world. Thus, organizations in the developing world already have the right to exploit many technologies disclosed in patents filed in the developed world. But they do not do so because, as discussed above, the utilization of even moderately complex technologies is not possible without significant training and technology transfer activity that cannot be accomplished through the grant of patent rights alone. In addition, technologies patented in the developed world may not be targeted to needs in the developing world without extensive further development.[91]

Ironically, the entities that would have most benefited from the non-assertion covenants made by EcoPC members were sophisticated firms in developed countries. At least one representative acknowledged this, noting that the most likely user of some of the company’s contributed patents would be environmental service companies. Yet because the EcoPC made no concerted outreach to promote the availability of contributed technologies, even sophisticated firms were unlikely to find and use these technologies.

### 6. Shift in Corporate Priorities.

Several interview respondents noted that corporate support for ESR initiatives within their own companies had lagged during the life of the EcoPC, and that budgetary and resource constraints resulted in a de-emphasis of ESR initiatives. Some speculated that these industry-wide trends may have affected the willingness of new members to join the EcoPC. At least one interview subject identified his own company’s declining commitment to sustainability during the period in which the EcoPC was in effect.

# IV. Quantitative Analysis

In this Part, we used the data on patents pledged to the EcoPC and their matched controls to analyze: (1) the legal status of EcoPC patents to gauge whether member companies considered continued ownership of their pledged patents as sufficiently important to incur the associated costs; and (2) the diffusion of the technologies protected by patents pledged to the EcoPC as measured by citations received from other patents.

## A. Data

For the purpose of our quantitative analysis, we updated the database previously used by Hall and Helmers. This means that for comparison purposes, we restricted the set of patents to all patents pledged prior to July 2010, which excludes the four families pledged by Hewlett-Packard and Hitachi.[92] We also included the original control patents, which had been obtained by propensity score matching on priority year, IPC subclass, and publication authority.

Updating the data turned out to be somewhat complex, partly because the original data were drawn from a PATSTAT version with non-permanent identifiers, and partly because PATSTAT itself changes over time, with some data disappearing due to changes in the data at the contributing national or regional patent offices. In addition, the list of patents on the EcoPC website appears to have changed slightly, to some extent in response to our comments on the original list (incorrect numbers, etc.). We used the April 2017 PATSTAT version and identified a correspondence between the prior identifying numbers and the permanent (as of April 2011) identifiers using information on the application number and authority of the relevant patents. In a few cases, we were unable to find the application number-authority combination on the new version of PATSTAT. There were four such applications from the Japanese Patent Office (JPO), which apparently had been withdrawn and are no longer on its website.[93] We included them in our forward citation analysis as having zero cites, for completeness. In addition, twenty-four applications from the Australian Patent Office (APO) were reduced to twelve applications in the new PATSTAT file. Most of these problems affected the control patents rather than the Eco-patents.

The resulting dataset contains 698 applications rather than the original 711, with the distribution shown in Table 2.

Table 2: Dataset Construction
Old (2011 data) New (2017 data)
Number of applications 711 698
Controls 473 461
Eco-patents 238 237
Number of equivalence groups 184 184
Controls 94 94
Eco-patents 90 90
Number of citations 1872 4056
Controls 1205 2713
Eco-patents 667 1343

Note: Controls matched based on the publication authorities, priority years, and IPC classes of the EcoPC patents.

From Table 2, one can see that although the set of applications has changed slightly, we still have the same number of equivalent groups for the patents to be analyzed. It is also clear that the number of citations to both the EcoPC patents and controls has grown considerably, more than doubling in both cases.[94]

For our inventor survey, we extracted from PATSTAT the names of all inventors of all 329 patents that cited an EcoPC patent after the patent had been pledged to the commons. We then focused only on those patents where the citation to the EcoPC patent was not added by the examiner. This left us with 141 patents (43%). After undertaking some name-cleaning and harmonization, we obtained a total of 271 inventors. We then searched the web for their contact information. We were able to send our short questionnaire, which consisted of only three questions, to seventy-one (26%) inventors. We obtained responses from thirteen inventors, a response rate of 18%. However, only ten of these thirteen inventors agreed to answer our questionnaire. These ten inventors worked for four different EcoPC member companies: three inventors worked for Bosch, three for IBM, three for DuPont and one for Xerox. These are the four firms that contributed the largest number of patents to the commons.[95] We summarize the results briefly in Section IV.C, below.

We began by looking at the legal status of the EcoPC pledged patents as of July 2017, summarized in Table 3. We collected these data from PATSTAT’s legal status tables of April 2017 and supplemented the information using web searches. The WO (PCT) patents in our database will not have a post-grant legal status since they are granted on a national basis, and a few patent applications from the JPO could not be found, probably because the PATSTAT entries were for translations or they were utility model applications in Japan, even though they might have been patent applications elsewhere. There are fifteen such patents for which we did not have legal status, or legal status is meaningless. Of the remaining 221 patent applications, almost 20% of the ninety priority patents were still in force as of July 2017, but only 11% of all the equivalent patents. Of the twenty-seven patents still in force or pending, twelve are U.S. patents, six are Japanese, four are European Patent Office (EPO) or German, and the remainder are Chinese (one), Russian (two), Mexican (one), and Korean (one). Almost half the patents have expired for nonpayment of fees, although almost as many expired at the end of their terms.

Table 3: Legal Status of Eco-Patents – July 2017
All Priority All Priority
pending 8 3 3.4% 3.3%
granted and in force 19 14 8.1% 15.6%
Total still active 27 17 11.4% 18.9%
nonpayment of fees 90 29 38.1% 32.2%
expired at term 61 30 25.8% 33.3%
rejected 18 7 7.6% 7.8%
withdrawn 24 7 10.2% 7.8%
Total not active 193 73 81.8% 81.1%
missing (from JPO)* 5 0 2.1% 0.0%
WO applications 11 0 4.7% 0.0%
Total 236 90

*These appear to be translation entries or utility models.

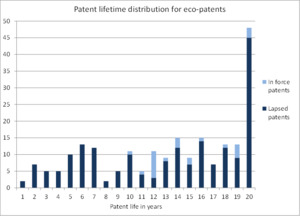

In Figure 1 below, we show the distribution of patent lifetimes (approximated by the lapse (expiration or nonpayment) dates minus the application filing date).[96] In the case of patents still in force, we measured the lifetime to July 2017. The distribution is fairly flat for those patents that did not remain in force for their full terms. A substantial number of patents remained in force for either the full 20-year patent term or a significant portion of it. This suggests that in many cases, companies decided to pay renewal fees to keep the patents in force even after they had been pledged to the EcoPC.[97] For example JP4696713 “Wastewater treatment process”[98] by Fuji Xerox is still in force in four out of five jurisdictions in which it was filed. Other patents still in force include Sony’s JP3876497 “Flocculating agent and a method for flocculation,”[99] which was granted in early 2007, and IBM’s US6294028 “Mercury process gold ballbond removal apparatus,”[100] which was granted in 2001 and maintained in force throughout the entire lifetime of the EcoPC. However, there are also patents such as US5050676 “Apparatus for two phase vacuum extraction of soil contaminants”[101] owned by Xerox; the patent has five equivalents, four of which had expired before the patent was pledged, and the remaining patent expired at term less than a year and a half after the patent was pledged and no maintenance fees were payable during that time. This is an example of the pledge of a patent that most likely no longer had any value to the company.

Figure 1: Patent Lifetime Distribution for Eco-Patents

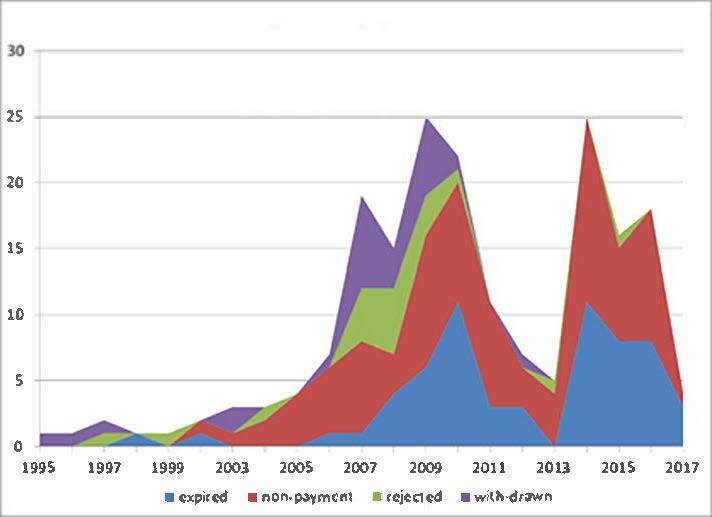

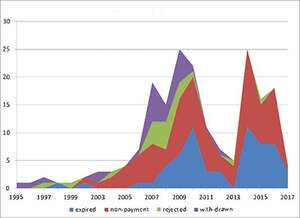

Figure 2 below breaks down the different reasons why patents lapsed. It shows that a significant number of patents have expired since 2007, the year before the EcoPC was launched. A few patents were rejected by the relevant patent offices or were withdrawn by applicants, but the majority lapsed due to nonpayment of renewal fees.

Figure 2: Lapse Trends for Eco-Patents

Table 4 below shows the geographic coverage of the EcoPC patents. Ninety percent of the priority patent applications were made to the four most important jurisdictions: the U.S., Germany, Japan, and the EPO, and these jurisdictions account for 80% of the patents overall. There is very little evidence that the patents in the commons ever covered less-developed countries. The only patents in middle-income countries are in Brazil (seven), Mexico (four), and Argentina (one), and there are none in low-income countries. The lack of patents in low-income areas shows that patents could not have been an obstacle to the use of technologies in less-developed countries.

Table 4: Application Authority Distribution
Authority Priorities All
USA US 34 75
Germany DE 20 45
Japan JP 17 34
EPO EP 10 34
South Korea KR 2 7
China CN 2 3
Austria AT 1 4
Spain ES 1 4
UK GB 1 2
Norway NO 1 2
Denmark DK 1 1
Brazil BR 7
Mexico MX 4
Australia AU 2
Russia RU 2
Argentina AR 1
France FR 1
Hong Kong HK 1
Israel IL 1
Total 90 237

## C. Technology Diffusion and Follow-On Innovation

Next, we reexamine the question of technology diffusion by looking at the updated citation data. Hall and Helmers have previously suggested that pledged patents protect environmentally friendly technologies that could have the potential to be adopted for use by third parties.[102] To analyze any effect on diffusion, we adopt a difference-in-differences estimation, comparing the number of forward citations received by patents pledged to the EcoPC before and after they were pledged to citations received by the set of matched control patents that were not pledged to the EcoPC. Our estimation approach allows for different citation patterns between the set of EcoPC and control patents before the EcoPC patents were pledged. This accounts for concerns that pre-pledge citation behavior could be correlated with the decision to pledge a given patent to the EcoPC.

Table 5 below shows a comparison of standard patent characteristics between the set of patents pledged to the EcoPC and the matched (by priority year, IPC subclass, and publication authority) control patents where we focus on the priority patents (Table A-1 in the Appendix shows the data for all equivalents). There are no statistically significant differences between the grant lag, the number of backward or non-patent literature references between the two sets of patents. Interestingly, EcoPC patents are more frequently granted. However, control patents have a larger family size and a larger number of claims, both of which are commonly used patent value indicators. This suggests that the EcoPC patents are potentially of less value than otherwise comparable patents. When we look at the number of forward citations received, the set of control patents accumulated a larger average number of citations than the pledged patents.

Table 5: Mean Patent Characteristics for eighty-nine Eco- Patents and ninety Control Patents

Table 6 below shows the share of EcoPC and control patents that receive any citations as well as the average number of citations received.[103] As indicated earlier, compared to Table 6 in Hall and Helmers prior work,[104] there are slightly fewer equivalents of our EcoPC patents and controls due to missing data and the consolidation at the APO. The share of patents that have citations has increased, becoming close to 90% for the equivalence groups, and the average citations per equivalence group has more than doubled. None of these results are unexpected, given the additional five years of data, as well as probable improvements in the PATSTAT coverage itself, but these results also highlight our much improved ability to assess the question of technology diffusion as a result of the EcoPC.

Table 6: Citation Counts for EcoPC Patents and Controls
all patents equivalence
group
all patents equivalence
group
all patents
Total patents Share with citations Total citations
Eco-patents 237 90 73.0% 85.6% 1343
Controls 461 94 57.1% 93.6% 2713
Average citations* Average citations**
Eco-patents 10.5 17.4 5.7 14.9
Controls 13.2 30.8 5.9 28.9

Note: Citations are measured as all forward citations in the patent literature between the application date and April/May 2017, adjusted for citations by equivalent patents in other jurisdictions.

* Average over patents with nonzero citations.

** Average over all patents.

Table 7 and Figure 3 below show the key results of our new analysis. Poisson and negative binomial models of citations at the patent-level show that EcoPC patents are half as likely to be cited than the controls (an elasticity of 0.4–0.6), and even less likely after donation, although this last result is only marginally significant. These regressions control for both priority year and the citation lag using dummies.

It is well-known that the citation lag distribution for patents has a somewhat smooth structure, rising at first to a peak at three to five years and then declining slowly.[105] We therefore attempt to improve the precision of our estimates by imposing the Jaffe-Trajtenberg model of citation diffusion and decline[106] rather than using the citation lag dummies. This model, shown in the final three columns of Table 7 below, uses a parametric model for the citation lag that is given by the following equation:

Where “t” is the priority year of the cited patent, “s” is the citation lag, and “cst” is the citation rate (the number of citations at that lag per sample patents available to be cited). f(t) is modeled as a set of priority year dummies. That is, the unit of observation is the average cites per patents with a given priority year, citation lag, and patent type (EcoPC patent before and after or control). Prior experience with this specification suggests that although it is an appealing model in that it captures both the initial increase in citation due to knowledge diffusion and the decline due to knowledge age, it is quite difficult to estimate successfully.[107] We do it in two ways: (1) nonlinear least squares with a dependent variable equal to average cites per patent; and (2) Poisson with a dependent variable equal to the total cites at the given lag to patents with a given priority year. In the latter case, we multiply the right-hand side of the model by the number of patents, so the models are equivalent. The results of the two estimation strategies are similar. Once we impose a model on the citation lag, the EcoPC patents are cited an average of 25% less than the controls, and there is no change after donation. The decay (obsolescence) and diffusion parameters are similar to those obtained by Hall and collaborators[108] for the U.S. patent data, with obsolescence increasing by about 5% per year, and diffusion about 50%. However, keep in mind that one reason the first is relatively low and the second relatively high is that there is a secular growth in citations that is not completely captured by the priority year dummies. That is, this model imposes a fixed citation lag structure on the data which is then allowed to be higher or lower, depending on priority year and EcoPC status. Because citations are often added by examiners rather than applicants,[109] we also report results in Appendix Table A-3 and Figure B-1 where we retain only citations made by applicants. That said, the results are very similar to the ones reported in Table 7 and Figure 3; there is no evidence of increased diffusion of patents after they were pledged to the EcoPC.

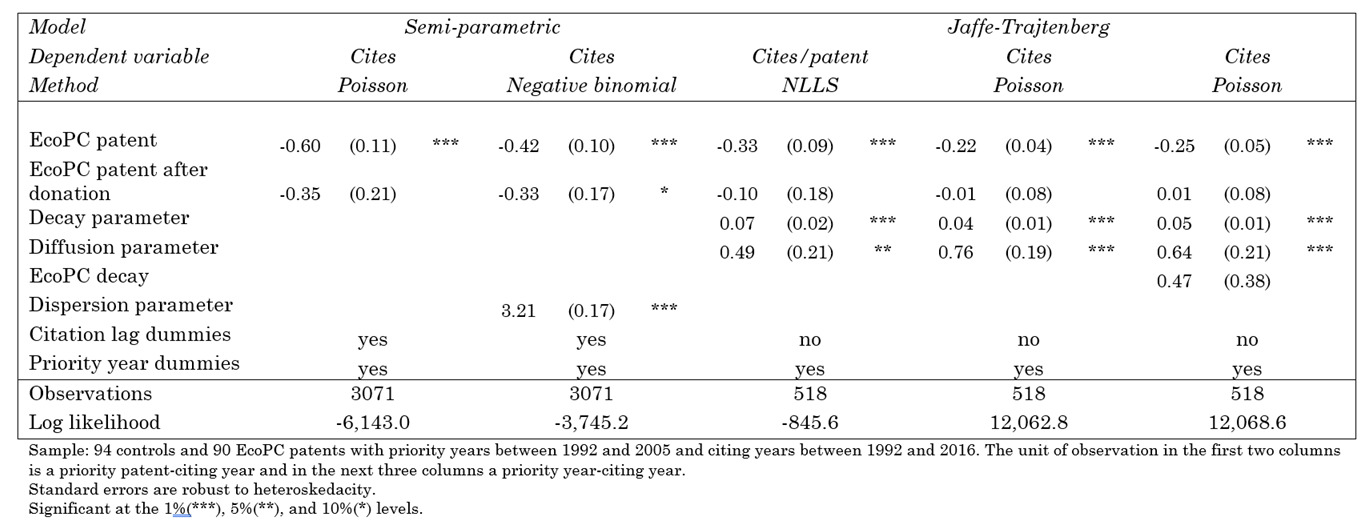

Table 7: Estimation of Citation Lag Models
Figure 3: Cites per Patent by Citing Year (as of May 2017)

Table 7 and Figure 3 show that there is little change in aggregate citation differences between EcoPC patents and controls before and after being pledged to the commons, although EcoPC patents are cited less overall. It is important to remember, however, that because the pledging firms retain a defensive termination right, there may be continuing innovation building on these patents that does not result in new patent applications (and citations). That is, there are limits created on the enforcement of patent rights by the firms that use the technologies in these patents, which may reduce the benefits of subsequent patenting, and thus reduce citations to the pledged patent. This issue is related to a broader problem: our analysis of diffusion only looks for diffusion that leads to follow-on innovation that is patented. This excludes simple use of pledged patented technologies and even follow-on innovation if it does not lead to a patent filing. However, in the absence of any information on the use of pledged patents,[110] the forward citation analysis is the only way to quantitatively assess the impact of the patent pledge on diffusion.

It is also possible that the nature of the citation changes, in that the technology in the patents becomes more useful to individuals and nonprofit institutions given the absence of royalty requirements. We investigate this question by looking at the source of the citations to the EcoPC patents and controls before and after donation. We divide the cites into five groupings according to their source: (1) self-citations from the firm that owns the pledged patent; (2) citations from other EcoPC participants; (3) citations from other firms; (4) citations from individual patentees; and (5) citations from non-profit institutions (universities, hospitals, public research organizations (PROs), and governments). We then define the before and after period for each grouping of citations according to the relation between the earliest priority date for the citing patent and the date the cited patent was donated to the commons. The results are shown in Table 8 below. In some cases, sample sizes are fairly small, but it does appear that self-citation falls relative to all the other categories, with the largest increases (by percentage) in citations by other EcoPC participants and non-profit institutions.

One issue that arises when counting the source of citations is that many patents have multiple applicants of different types. Given the nonrivalry of knowledge, which implies that one citer’s use of the knowledge in a patent does not depend on use by another citer, it might be appropriate to simply count all the applicant-citations as citations as we did in the first panel of Table 8. Nevertheless, we also show a weighted version of the table in the second panel where the weights are proportional to the inverse of the number of applicants on the citing patent.[111] Although the distribution of cites changes dramatically when we weight, due to the tendency of individuals to share in applications, the qualitative conclusions with respect to the post-commons citing behavior are the same.

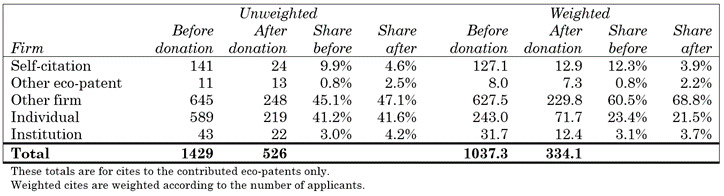

Table 8: Citations to the Eco-Patents by Citer Type

## D. Inventor Awareness

As described in Section IV.A, in order to validate our quantitative results, we asked the inventors of patents that cited an EcoPC patent after it was pledged: (a) whether they were aware of the citation (we exclude citations added by examiners); (b) if they were aware of the citation, whether they knew that the cited patent was part of the EcoPC; and (c) if they answered (a) and (b) affirmatively, whether the fact that the EcoPC patent was available for use royalty-free played any role in their decision to rely on it as prior art. As Section IV.A explains, we obtained valid responses from ten inventors; 50% indicated that they were aware of the citation, but none of them were aware that the cited patent was part of the EcoPC. While the sample of inventors is obviously very small, it nevertheless confirms our quantitative results: the pledge of a patent to the EcoPC was ineffective in spurring the diffusion of the patented invention. In fact, the responses from the inventors also confirm the results of our interviews with company representatives as they suggest that inventors were unaware of the EcoPC even when they relied on patents that were part of the EcoPC as prior art.

# V. Assessment and Analysis

The results of our analysis suggest fairly strongly that the technologies covered by the contributed patents did not in fact attract significant interest by third parties, even before contribution to the commons. As a result, pledging these patents to the commons did not affect the interest of third parties in their underlying technologies and hence the commons did not promote their use and diffusion.

There is a growing literature concerning the factors that motivate patent holders to join patent pooling arrangements and seeking to understand why some patent holders elect not to join such pools.[112] The potential for monetary gain, which is central to many pooling decisions, is not a factor with respect to philanthropic and CSR-oriented pools such as EcoPC. Also, unlike the MPP and the NTD Pool, the EcoPC lacked significant governmental support and incentives,[113] perhaps making its path more challenging from the outset.

One of the reasons for the EcoPC’s lack of effectiveness is likely the fact that it was conceived and implemented by the suppliers of technology as a volunteer effort without consulting the demand side (potential users of these patents/‌technologies).[114] As such, the EcoPC was constructed in such a way that it was not easy for potential users to understand how the available technologies could be used. It simply offered a passive website with patent listings, rather than suggestions on how these technologies could be utilized, either separately or together.[115] Our results suggest that effective technology diffusion requires more than patent non-assertion, especially in the developing world. As discussed above, technical assistance and technology/‌know-how transfer are essential for implementing environmental technologies to an even greater degree than for software or pharma, and patent disclosures alone are seldom sufficient to enable someone to implement a technology effectively.[116]

Likewise, there was little or no coordination among EcoPC contributors regarding the technologies covered by the patents they were pledging. As previously discussed by Hall and Helmers,[117] the pledged patents appeared largely to protect different technologies. Hence, the implementation of a given technology might not have been possible using only pledged patents (i.e., any of the covered technologies could require the use of additional patents not contributed to the commons). As a result, synergies that could have emerged from the contribution of multiple patents covering selected technologies did not emerge.

Related to the previous point, the EcoPC was organized as a volunteer effort. Members paid no fees, and the WBCSD and ELI managed the organization largely as an accommodation to IBM. Without payment, ancillary value-added services are unlikely to be provided. This being said, some interviewees stated that their companies would not have joined EcoPC had they been required to pay membership fees. So, there is a clear trade-off, or perhaps a need for public support or a tax incentive if an activity such as EcoPC is viewed as socially desirable. This also means that the ability to distribute the fixed costs associated with managing such an institution favors an approach that brings together a larger number of participating companies than the EcoPC.

Low membership can be attributed, in part, to the cost of the internal patent analysis that was required to contribute. Several of the original EcoPC participants were large, sophisticated organizations with internal patent analytical resources and a clear understanding of which patents would, and would not, advance corporate goals. Other firms may not have wanted to risk giving away a patent that could have potential value. Likewise, the internal effort of identifying these patents, without a clear payoff, may not have been viewed as worth the effort by overworked patent counsel.

Perhaps the most cogent critique of the EcoPC was its failure to track patent utilization. Without knowledge of how/‌whether patents were being utilized, companies could not justify expending further effort on the activity. Moreover, even the PR benefit of belonging to the EcoPC waned after the initial contributions, given that there were no ‘success stories’ to promote. More generally, the lack of information on usage meant that it was very difficult to gauge the success of the initiative and to make adjustments to its structure and management to improve its performance. Finally, the lack of demonstrable results from the project eroded the potential PR benefits that member firms may have hoped to achieve from participation in the EcoPC.

The lack of usage tracking underscores another weakness of the EcoPC, especially when compared to more successful pledge communities: the lack of dedicated administrative and managerial resources devoted to expanding and promoting the commons. While EcoPC was housed within well-established organizations such as WBCSD and ELI, these organizations received no additional compensation for managing the EcoPC and appear to have taken on this role as an accommodation to a significant member (IBM). Most trade associations have dedicated personnel for membership development, and enrolling members takes significant time and effort. Without these resources, it is not surprising that the EcoPC was unable to recruit a larger body of members nor that WBCSD and ELI spent few additional funds for EcoPC recruitment. As the example of DPL has shown,[118] the lack of dedicated managerial and promotional resources can contribute to the failure of a pledge community to gain significant traction in the marketplace.

These difficulties and potential missteps in implementing the EcoPC almost certainly contributed to its demise, but they may not have been the only reasons that the EcoPC failed. Mattioli, writing near the peak of the EcoPC’s activity, observed the diffuse and overly broad nature of the EcoPC’s scope: reducing environmental harm.[119] This broad remit, in contrast to the goals of the narrowly focused MPP and NTD Pool, could have made it more difficult for potential licensees to conceptualize solutions to particular environmental problems using the tools offered by the EcoPC.

More generally, however, the EcoPC may have been a victim of changing corporate priorities in the global business environment. When IBM introduced the idea of the EcoPC to other large corporations in 2006, corporate sustainability had recently gone mainstream.[120] Many large corporations were experimenting with sustainability strategies and campaigns. The global economic recession that followed, however, served to constrain the social programs promoted by firms, including sustainability programs.[121] One of the ways in which ESR programs may have been “trimmed” during hard economic times was by emphasizing those programmatic components that would appeal specifically to consumers and de-emphasizing others.[122] The EcoPC, which was, almost by definition, tangential to the principal product markets in which its participants operated, may have had little direct impact on participants’ customer relations. As such, attention to initiatives such as the EcoPC may have waned over the years of the global economic downturn, until the project finally withered entirely in 2016. This possibility is corroborated by the fact that at least half of the corporate EcoPC representatives whom we interviewed were retired at the time of our interview. The EcoPC and the ideals that it embodied may have been the product of a prior generation of corporate managers. If this is the case, then new commons efforts in the environmental space will need to develop strategies to rekindle corporate interest in ESR and green-technology solutions.

# VI. Conclusion

The EcoPC represented a novel and ambitious cooperative activity by leading international firms to improve environmental sustainability through the contribution of under-utilized, non-core patents to a publicly-accessible pool. Though the participants in the EcoPC represented some of the largest and most influential patent holders in the world, our results demonstrate that the effort achieved only modest results and contributed little to technology diffusion. There are numerous reasons hypothesized for the failure of the EcoPC, ranging from defects in implementation, reporting and management, to a general shift away from corporate environmental and sustainability programs lacking direct customer benefits. Future initiatives seeking to make green technologies more widely available should consider the lessons learned from the EcoPC. There are clear trade-offs between costs and benefits that organizers of future efforts should consider.

The experience of the EcoPC, even though it did not realize its ambitious goals, has helped to advance our understanding of how patent commons can work and fail to work. As such, the EcoPC has made an undeniable contribution to the study of patent commons and pledges. The failure of the EcoPC to achieve significant technology diffusion and to attract significant corporate participation should not be viewed as a failure of the patent commons model itself. Instead, this worthwhile effort should be viewed as an invitation to experiment further with, and to improve upon, the patent commons model both in the area of green technologies and beyond.

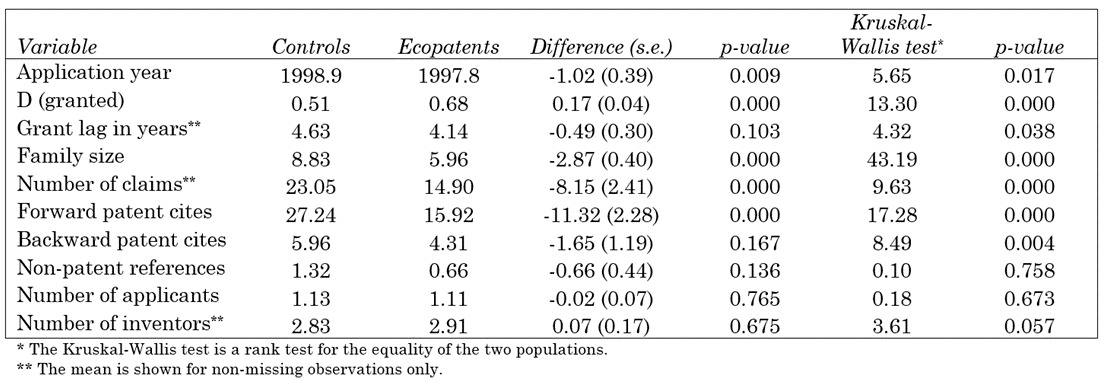

Table A-1: Mean Patent Characteristics for 236 Eco-Patents and 454 Control Patents
Table A-2: Patents with Nonzero Forward Cites Only\ (437 Controls; 218 Eco-Patents)

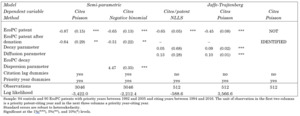

Table A-3: Applicant Cites Only

Figure 3: Cites per Patent by Citing Year (as of May 2017)
